Precision Lock Nuts Engineered for Performance and Reliability
Precision Lock Nuts Engineered for Performance and Reliability
At KUSO Relock USA, LLC®, we provide high-quality precision lock nuts designed to deliver secure, accurate, and long-lasting shaft retention across a wide range of industrial applications.
Whether used in machine construction, electric drive motors, linear motion systems, precision spindles, or ball bearing assemblies, KUSO lock nuts ensure exceptional stability and prevent unwanted axial movement. Manufactured to the highest quality standards, our lock nuts offer superior precision, durability, and dependable performance—even in the most demanding operating environments.
When precision matters, manufacturers and engineers trust KUSO for reliable fastening solutions that keep critical components securely in place.
Precision. Reliability. Performance.
The trusted choice for precision locking technology.
Kuso Relock® lock nuts are made in the world's precision machining epicenter of Biel, Switzerland by Fluri Praezisions- & Mikromechanik AG. Fluri is known throughout Switzerland for their precision machining and attention to detail. Fluri is ISO : 9002 certified since 1994 and is family owned & operated.
Precision lock nuts have many different applications. Whether in machine construction, in drive motors, linear translation mechanisms, or for tensioning spindle or ball bearings - everywhere that components on shafts have to be secured against lateral movements, you can depend on the quality and reliability of KUSO lock nuts.
KUSO lock nuts are produced in the most varied designs. Depending on your requirements, you can choose between axial or radial clamping. The lock nuts are also available with 3-way clamping, and in extra-wide or stainless steel versions. Our patented MRA axial locknut can be locked and unlocked with its cam design, allowing the fine tuning of machines during assembly, after break-in, and throughout the lifetime of the machine.
Lock nuts are manufactured in high-quality steel and subjected to the most stringent demands with regards precision. Kuso lock nuts are ground in a single fixturing, which guarantees our 2 micron axial run out. This way, we can make sure that an even distribution of the load is achieved across the thread pitch, and clamped elements. This leads to improved stability and a longer service life of units.
To make the installation of KUSO lock nuts easier and to prevent any damage, we recommend our extensive range of accessories. Using a socket wrench and torque adapter, the forces acting on units can be defined and regulated as needed.
The radial locking system is suitable if there is sufficient space for the tool. Utilizing the grub screw, the brass lardon is pressed into the thread flanks, thus increasing the loosening torque. We offer the radial locking system for standard nuts, extra-wide lock nuts, lock nuts with triple locking system and INOX lock nuts.

Material
Outer diameter up to D = 60mm
Designation: ETG 100
DIN: 45S20
Material #: 1.0727
Tensile strength: mind. 960 N/mm²
Outer diameter from D = 60mm
Designation: Ovako 280T
DIN: 20MnV6
Material #: 1.5217
Tensile strength: mind. 540 N/mm²

Material
Designation: INOX
DIN: X10CrNiS 18-9
Material #: 1.4305
Tensile strength: min. 500 N/mm²

Material
Outer diameter up to D = 60mm
Designation: ETG 100
DIN: 45S20
Material :# 1.0727
Tensile strength: min. 960 N/mm²
Outer diameter from D = 60mm
Designation: Ovako 280T
DIN: 20MnV6
Material #: 1.5217
Tensile strength: min. 540 N/mm²

Material
Outer diameter up to D = 60mm
Designation: ETG 100
DIN: 45S20
Material #: 1.0727
Tensile strength: min. 960 N/mm²
Outer diameter from D = 60mm
Designation: Ovako 280T
DIN: 20MnV6
Material #: 1.5217
Tensile strength: min. 540 N/mm²
The axial locking system is suitable when there is not enough space and the lock nut must be secured axially. Utilizing an eccentric screw, the Lardon is pressed into the thread flanks, thus increasing the loosening torque. Thanks to the eccentric screw, the lardon can be actively loosened, making it much easier to dismantle the adjusting nut. We offer the axial locking system for the standard nuts and for the extra-wide lock nuts.

Material
Outer diameter up to D = 60mm
Designation: ETG 100
DIN: 45S20
Material #: 1.0727
Tensile strength: mind. 960 N/mm²
Outer diameter from D = 60mm
Designation: Ovako 280T
DIN: 20MnV6
Material #: 1.5217
Tensile strength: mind. 540 N/mm²

Material
Outer diameter up to D = 60mm
Designation: ETG 100
DIN: 45S20
Material #: 1.0727
Tensile strength: mind. 960 N/mm²
Outer diameter from D = 60mm
Designation: Ovako 280T
DIN: 20MnV6
Material #: 1.5217
Tensile strength: mind. 540 N/mm²
Kuso Slotted Adjusting Lock Nuts MRG | Special nuts

-Thread and plane surface are ground in one clamping
-Axial runout accuracy 0.002
-Outer diameter and back-side ground
-Surface hardened to 60 HRC
-Thread quality: 4H
-Right and left hand threads
-Thread from M20 to M100
-Special sizes on request

We now also manufacture lock nuts according to your requirements. Thanks to our modern machinery, we can implement special designs quickly and cost-effectively.
To facilitate the assembly of the lock nuts and to prevent damage, we strongly advise you to use our extensive range of accessories. Socket spanners and torque adapters can be used to define the forces acting on the units.

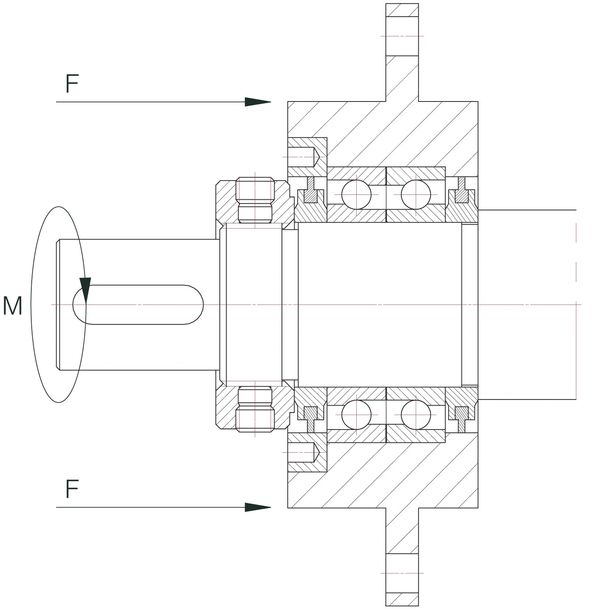

M = 0.17*F*d
M = tightening torque on the adjusting nut (Nmm)
F = axial force of the adjusting nut (N)
d = nominal diameter of the adjusting nut (mm)
where the axial force F must not exceed the following maximum value:
F <255*m*d
m = thread length (mm)
